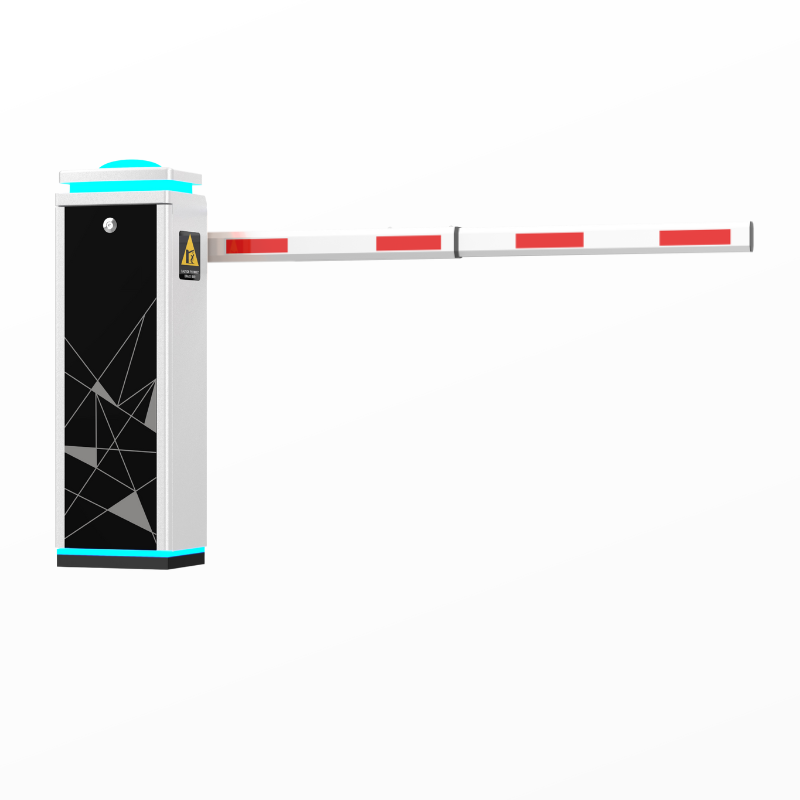

High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator

  • 1
  • 2
  • 3

Brand Name : Ankuai

Model Number : AKS580

Certification : ISO9001, CE Certificate

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union

Supply Ability : 30000 sets per Month

Delivery Time : 3 Work days for sample

Packaging Details : Regular package way with carton

Cabinet Dimension : 344*283*1019mm

Drive : 100W 24VDC motor

Motor Power : 100W

Speed Rate : 1.8/3s/6s

Boom Length : Max 6m

key Words : Barrier Gate

Working Temperature : -30°C~80°C

Remote Control : Maximum 30m

Boom Type : Telescopic, Boom, Floding, etc.

Warranty : 12 months

Control : Remote Key, Loop Detector, IR Sensor, RFID, Manual

Contact Now

High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator
Product Specifications
Parameter Details
Material

Power-coated steel (cabinet)

Aluminum alloy (boom)
Place of Origin Guangdong, China
MOQ 1 unit
Protection Rate IP54
Product name Barrier Gate
Input interface Switch quantity or high-level signal
Size 344*283*1020mm
Opening and closing times 1.8s/3s/6s
Lever Length 3~6m (Maximum, Adjustable)
Raletive Humidity <90%
Voltage 220V/110V
Technical Specifications
Speed Time 1.5s 3s 5s 1.8s 3.5s 5.5s 6s
Boom Type Straight Boom Straight Boom Straight Boom Folding Boom Folding Boom Folding Boom Fence Boom
Boom Length 3m 4.5m 6m 3m 4.5m 6m 5m
Additional Specifications: Place of origin: China | Product model: AnKuai Barrier Gate AKD117 | Boom Type: Straight Boom, Folding Boom, Fence Boom | Boom Length: Maximum 6 meters | Speed: 1.8~3s/3~6s | Voltage: AC220V±15% | Frequency: 50HZ | Power consumption: 100W | Working temperature: -30°C to 80°C | Housing dimension: 344(L) * 283(W) * 1020(H) | Weight: 45kgs | Drive: DC24V | Max RC Distance: ≤30m
Mechanical Features
  • A sturdy, waterproof chassis built for outdoor environments.
  • An integrated movement system—with all components produced via full molding—ensures stability and precision.
  • A precision four-bar linkage delivers smooth operation, minimizing vibration and prolonging service life.
  • A 100W gear reducer provides quiet, compact transmission alongside shock-free stall protection.
  • A manual locking mechanism enables easy manual operation when power is cut off.
Smart Parking Barrier Features
  • Loop detector connector is available.
  • Auto-delay when closing(adjustable).
  • Automatic arm open function when powered off.
  • Infraed sensor signal anti-smashing interface.
  • The operation speed can be adjusted from 1.8s to 6s.
  • High-sensitivity arm auto-reverse function.
  • The arm automatically locks when powered off and opens the barrier gate by hand.
  • Arm swing-out function: when the vehicle hits the barrier gate, the arm can swing out to avoid further damage to the vehicle and barrier machine core.
High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator
  • Adaptive Speed Control: Adjust operation speed from 1.5s to 6s, with customizable slow-up/slow-down functions for precise control.
  • Smart Safety Systems:
    • Obstacle rebound and ground sensor anti-smash technology prevent accidental collisions.
    • Infrared photocell & loop detector inputs enhance safety for vehicles and pedestrians.
  • Flexible Installation: Quick left/right arm direction switching and automatic balance adjustment for hassle-free setup.
  • Powerful Connectivity: RS485 communication, LED/traffic light outputs, and fire linkage compatibility for integrated systems.

Safety First: Multi-Layer Protection

  1. Obstacle Detection: Instant arm reversal when an obstruction is sensed during descent.
  2. Ground Sensor Priority: Overrides closing commands when a vehicle is detected.
  3. Physical Safety: Anti-smash rubber strips and high-density foam arm reduce impact risk.

Easy Installation & Maintenance

  • Concrete Base: 150mm larger than the unit, 200mm thick for stability.
  • Spring System: Pre-matched for balance; adjustable tension via simple handle rotation.
  • Troubleshooting: Clear error codes (e.g., EFF-01 for hall faults, EFF-02 for undervoltage) and self-diagnostic functions.

Ideal for Various Scenarios

  • Parking garages, toll stations, and industrial compounds
  • Facilities requiring high-security access control
  • Environments with extreme temperatures or high traffic flow
High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier OperatorHigh-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator
